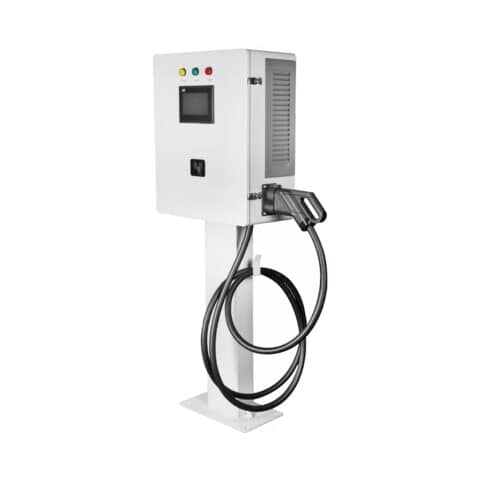

CCS2 DC Charger-DCC-DE-30
Lutong intelligent DC charging pile, ‌ can charge new energy electric vehicles quickly and efficiently, greatly improving the charging efficiency, ‌ is very suitable for users who need to quickly supplement electricity. ‌ charging interface supports national standard GBT and European standard CCS2, equipped with advanced control system and user interface, ‌ provides more functions of charge management and payment, power selection is 30kw/40kw/60kw
Parameter
Power Supply
3P+N+PE
Input Voltage
400V AC
Input Current
47A
Maximum Output Current
100A
Maximum Output Power
30kw
Output Voltage
150-1000V DC
Frequency
50/60HZ

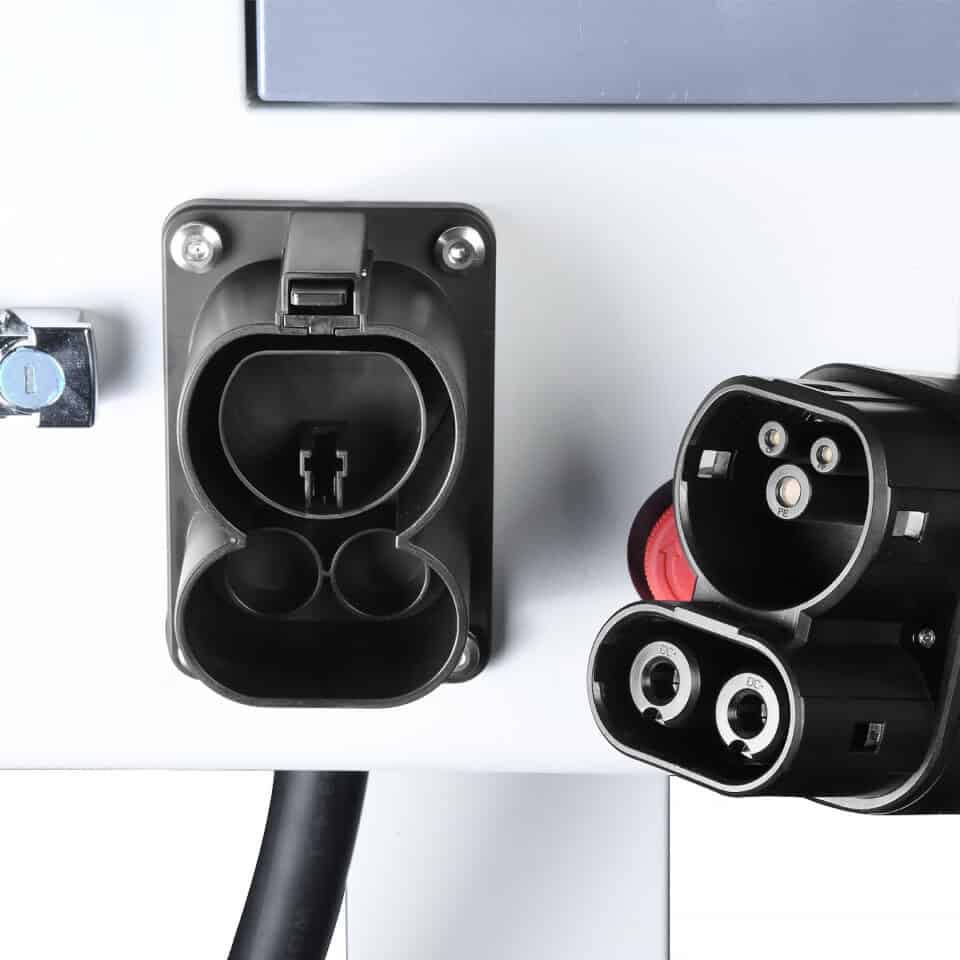

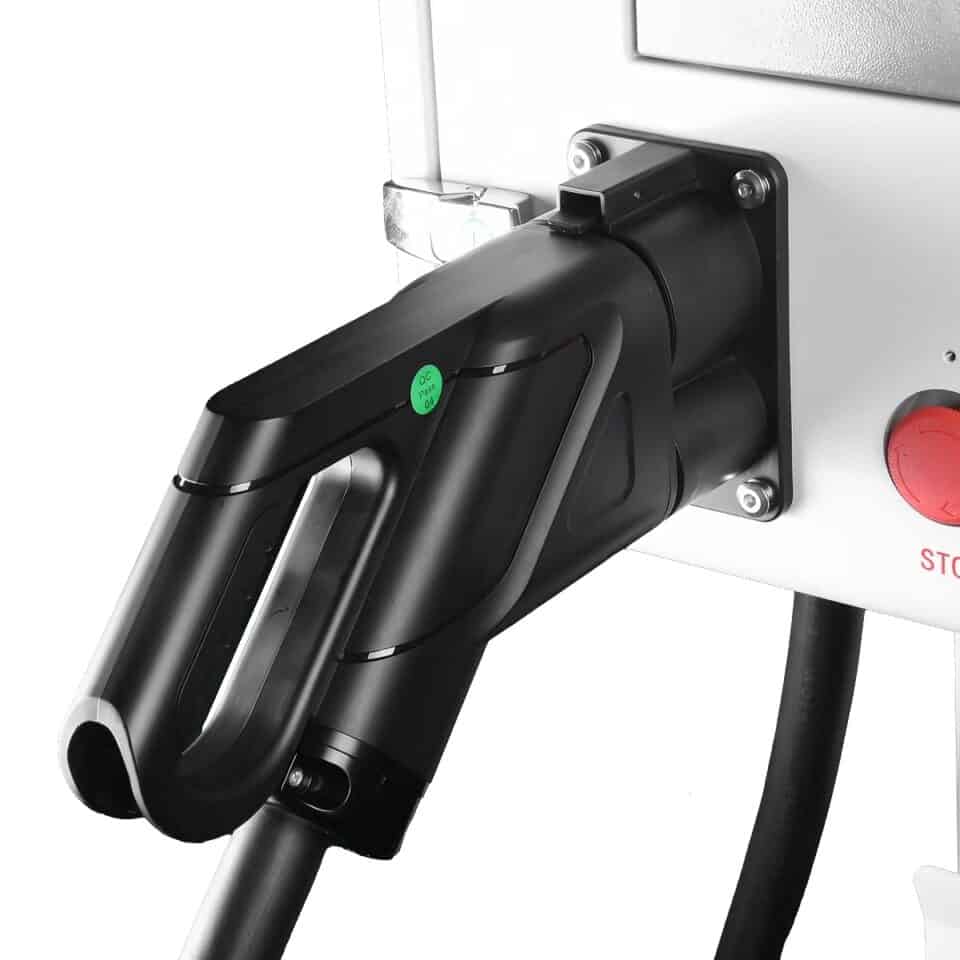

Charger Connector
CCS2
Number of lines
One
Cable Length
5 meters
Enclosure
Galvanized Steel
Installation
Column style
LED Indicator
Green/Yellow/Red
LCD Display
7' Touch Screen
Start Mode
APP/QR code/RFID Card
Charging mode
Automatic charging,by time,by power,by amount
Wi-Fi & Ethernet
Optional
4G
Optional
OCPP
OCPP1.6（Optional）
Load adjustment rate
≤±5%
Grid adjustment rate
≤±0.1%
Start the overshoot
≤±3%
Efficiency
Max95%
THD
≤5% @ 50%~100% Full load output
Power factor
≥0.98 @ 50%~100% Full load output
Fluctuation coefficient
≤1%
Leakage Protection
TypeA
Stop
Standard
Interface protection
IP54
Shock protection
1k10(Screen IK08)
Insulation resistance
>20MΩ
Cooling Method
Fan Cooling
Operation Temperature
-20°C~+50°C
Work Humidity
5%~95%
Work Altitude
<2000m
Product Dimension
580*280*1600mm (L*W*H)
External Package
Wood Case
Insulation resistance
500MΩ （1000V AC）
Shell Material
ABS and PC Flame Retardant Grade UL94 V-0
Mechanical Life
No-Load Plug In / PullOut >10000 Times
Operating Temperature
-20° C ~ +50° C
Storage Temperature
-40° C ~ +80° C
Warranty
2 Years
Certification Standard
EN IEC 61851-1:2019 IEC 61851-1:2017 IEC 61851-21-2:2021 EN 61851-23:2014 EN 61851-24:2014
Certification
CE Approved
Protection
1.Leakage Current Protection 2.Over Current Protection 3.0ver Voltage Protection 4. Under Voltage Protection 5.0ver Temperature Protection 6. Low Temperature Protection 7.Short Circuit Protection 8. Surge Protection 9.0verload Protection (self-checking recover)
Practical Scenarios
Product Usage Diagram
Start Charging
Start Charging
End Charging
Product Usage Precaution
The product complies with the requirements of the EU Directive.
Donot dispose ofthe productin household waste! Dispose of the product at an authorized waste disposal company or at a municipal waste disposal facility. Observe the currently valid regulations. In case of doubt, contact the disposal facility.
Attention! A dangerous situation may occur if the measures are not observed. Riskofdeath, seriousinjury and burns!
Do not use charging cables that are damaged at the housing, plugorcable!
Donot use extension cables of an ykind!
Donotusemultiplesockets!
Do not use travelad apters!
Vehicle coupling type 2.
Follow the operating instructions!
Do not expose to direct sunlight!
