CCS2 DC Charger-DCC-SE-120

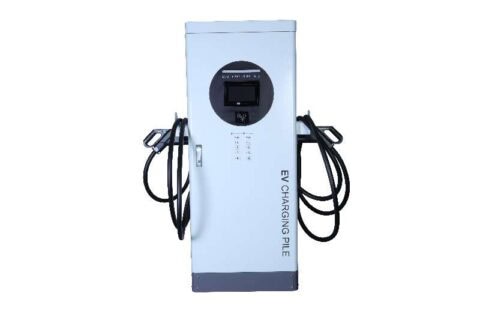

Lutong intelligent DC charging pile, ‌ can charge new energy electric vehicles quickly and efficiently, greatly improving the charging efficiency, ‌ is very suitable for users who need to quickly supplement electricity. ‌ charging interface supports national standard GBT and European standard CCS2, equipped with advanced control system and user interface, ‌ provides more functions of charge management and payment, power selection is 30kw/40kw/60kw/120kw
Parameter
Power Supply
3P+N+PE
Input Voltage
260V~530V AC
Input Current
200A
Maximum Output Current
200A(single plug)/400A(Double plug)
Maximum Output Power
120kw
Output Voltage
150-1000V DC
Frequency
50/60HZ
Charger Connector
CCS2
Number of lines
Double
Cable Length
5 meters
Enclosure
Galvanized Steel
Installation
Column style
LED Indicator
Green/Yellow/Red
LCD Display
7' Touch Screen
Start Mode
APP/QR code/RFID Card
Charging mode
Automatic charging,by time,by power,by amount
Wi-Fi & Ethernet
Optional
4G
Optional
OCPP
OCPP1.6（Optional）
Load adjustment rate
≤±5%
Grid adjustment rate
≤±0.1%
Start the overshoot
≤±3%
Efficiency
Max95%
THD
≤5% @ 50%~100% Full load output
Power factor
≥0.98 @ 50%~100% Full load output
Fluctuation coefficient
≤1%
Leakage Protection
TypeA

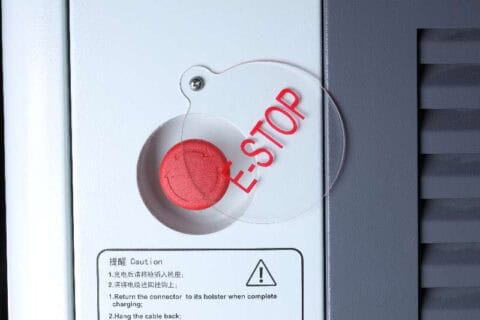

Stop
Standard
Interface protection
IP54
Shock protection
1k10(Screen IK08)
Cooling Method
Fan Cooling
Operation Temperature
-20°C~+50°C
Work Humidity
5%~95%
Work Altitude
<2000m
Product Dimension
580*280*1600mm (L*W*H)
External Package
Wood Case
Insulation resistance
≥20MΩ
Shell Material
ABS and PC Flame Retardant Grade UL94 V-0
Mechanical Life
No-Load Plug In / PullOut >10000 Times
Operating Temperature
-20° C ~ +50° C
Storage Temperature
-40° C ~ +80° C
Warranty
2 Years
Certification Standard
EN IEC 61851-1:2019 IEC 61851-1:2017 IEC 61851-21-2:2021 EN 61851-23:2014 EN 61851-24:2014
Certification
CE Approved
Protection
1.Leakage Current Protection 2.Over Current Protection 3.0ver Voltage Protection 4. Under Voltage Protection 5.0ver Temperature Protection 6. Low Temperature Protection 7.Short Circuit Protection 8. Surge Protection 9.0verload Protection (self-checking recover)
