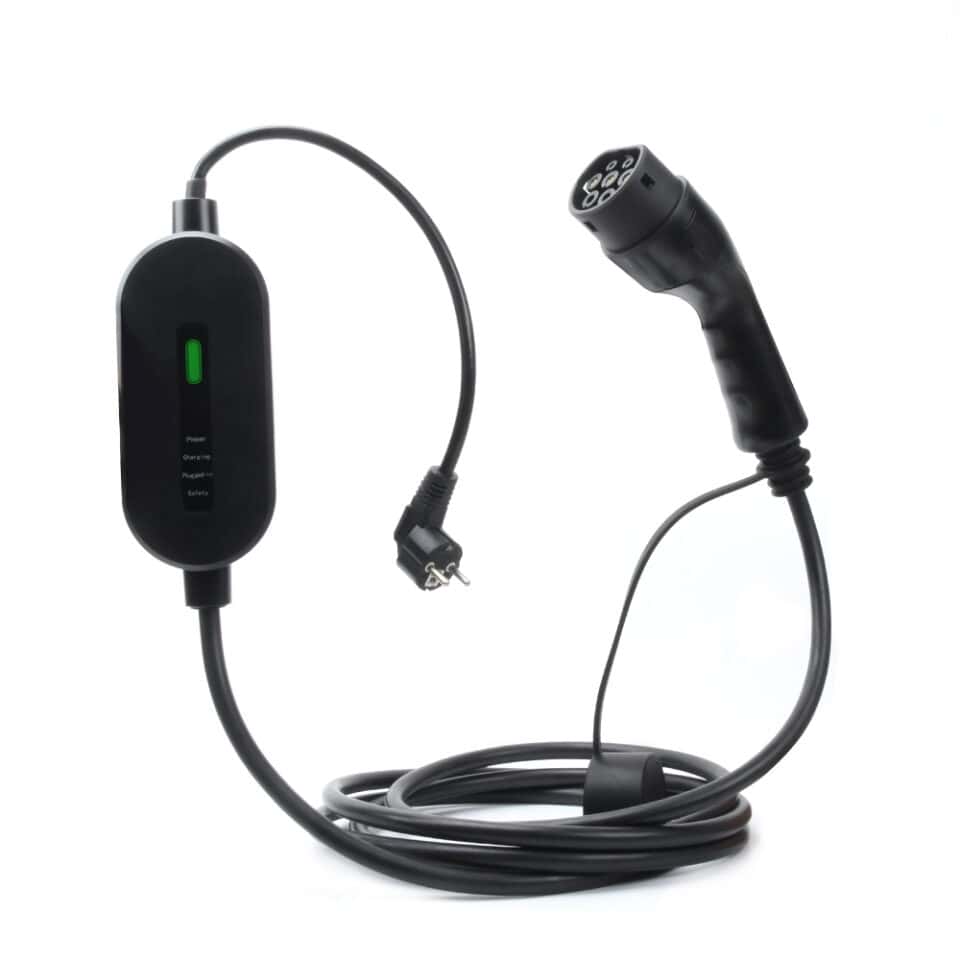

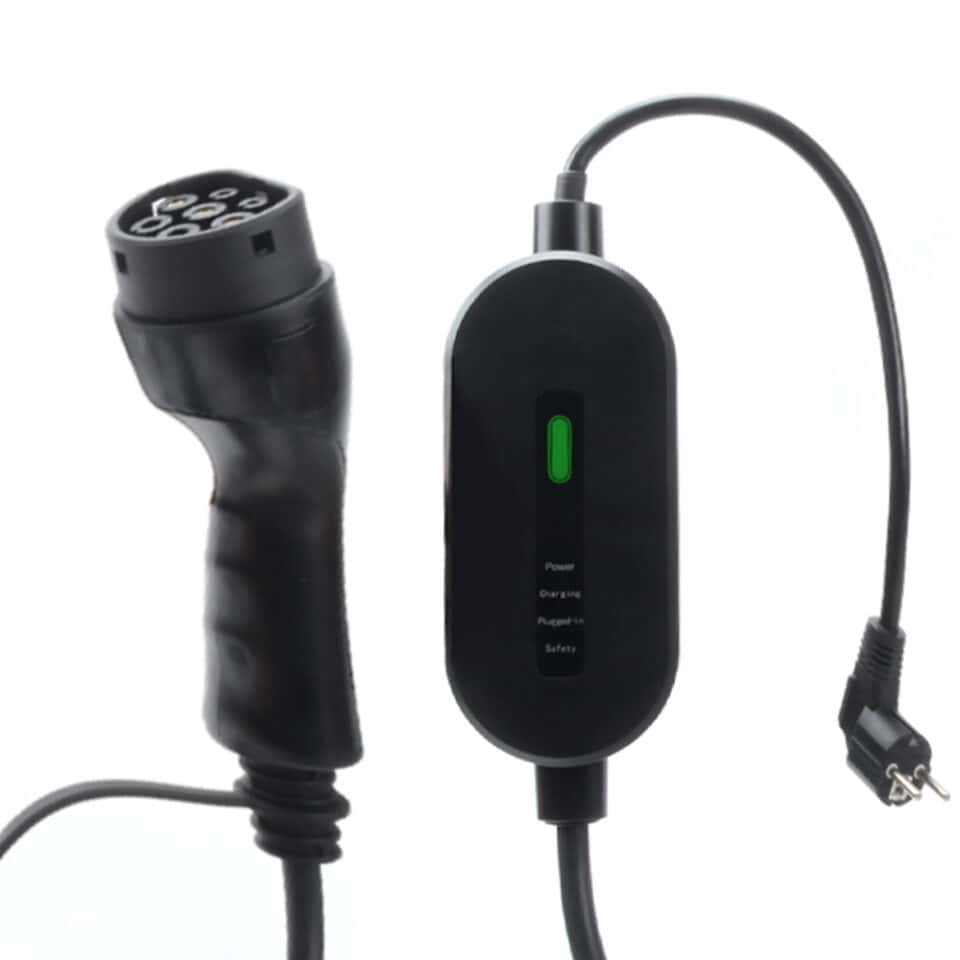

16Amp Led 3.5kw EV Charger

For the wall side plug: We can install the wall side plug according to different countries situation:

AU Market ——AU/NZ Plug
UK Market ——3Pin UK Plug
EU Market ——EU Schuko Plug, Blue CEE Plug, Red CEE Plug etc.
North American Market ——NEMA 5-15,6-15,6-20, 10-30, 6-50,10-50, 14-30,14-50 Plug etc.

Parameter

Rated Current

16A ( Fixed Current)

Rated Power

Max 3.6KW

Operation Voltage

AC 110V~250 V

Rate Frequency

50Hz/60Hz

Leakage Protection

Type B RCD (Optional )

Withstand Voltage

2600V AC 1min (with no flashover or breakdown)

Contact Resistance

≤0.3mΩ（L/N）

Insulation resistance

500MΩ （1000V AC）

Shell Material

PC Material

Mechanical Life

No-Load Plug In / PullOut >10000 Times

Operating Temperature

-25° C ~ +55° C

Storage Temperature

-40° C ~ +80° C

Protection grade

IP66

EV Control Box Size

185*67*44 (mm)

Weight

2.2KG

Standard

IEC 62196 , IEC 61851

LCD Display

Temperature, Charging Time, Actual Current, Actual Voltage, Actual Power, Capacity Charged

Certification

CE Approved

Protection

1.Leakage Current Protection 2.Over Current Protection 3.0ver Voltage Protection 4. Under Voltage Protection 5.0ver Temperature Protection 6. Low Temperature Protection 7.Short Circuit Protection 8. Surge Protection 9.0verload Protection (self-checking recover)

Practical Scenarios

Product Usage Diagram

Start Charging

Start Charging

End Charging

Product Usage Precaution

The product complies with the requirements of the EU Directive.

Donot dispose ofthe productin household waste! Dispose of the product at an authorized waste disposal company or at a municipal waste disposal facility. Observe the currently valid regulations. In case of doubt, contact the disposal facility.
