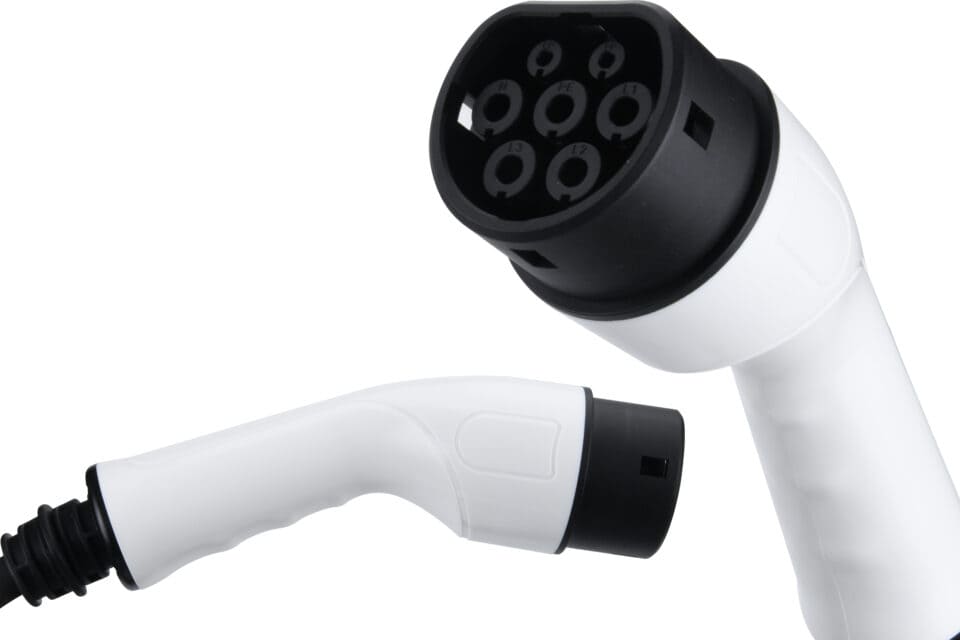

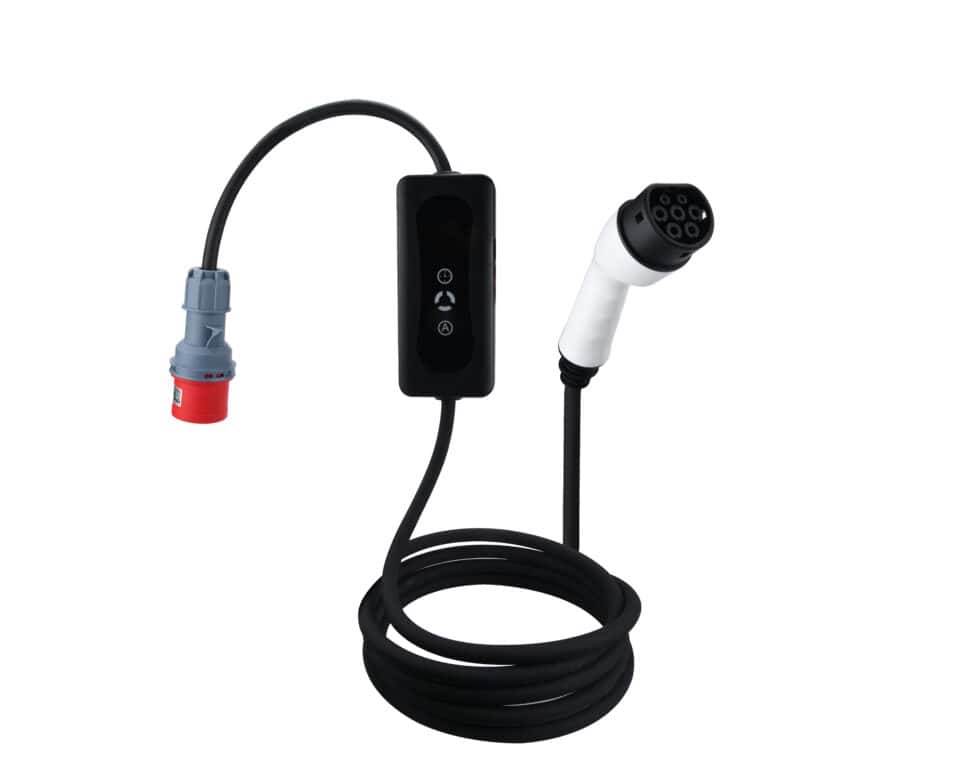

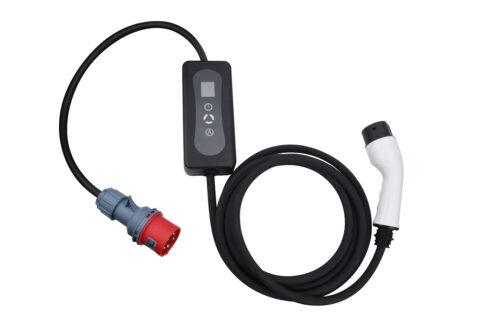

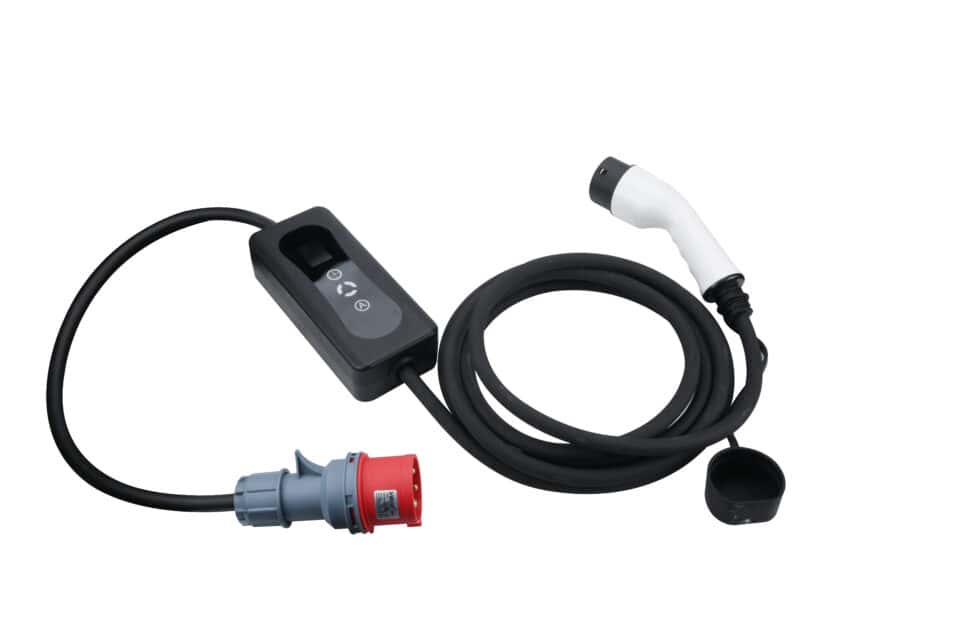

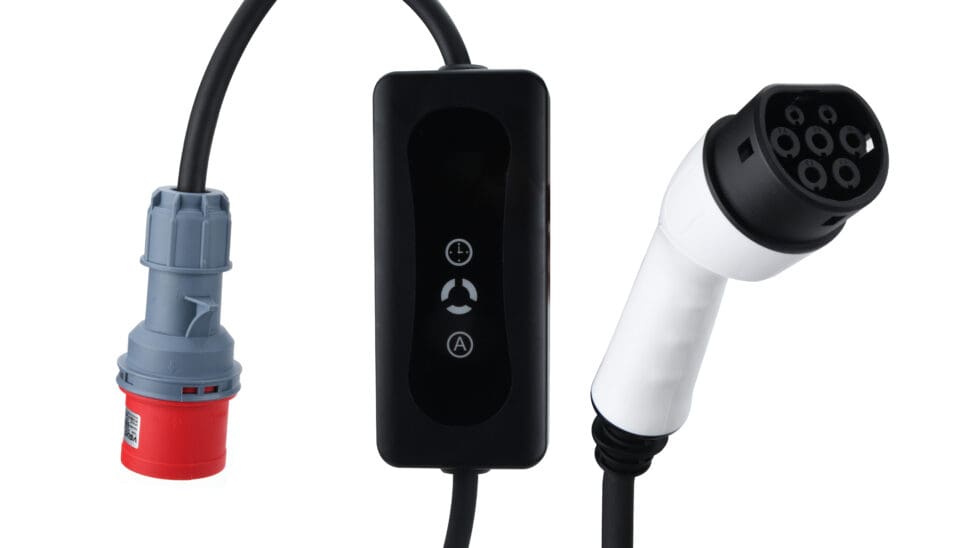

32Amp 22KW 3-Phase Adjustable EV Charger

For the wall side plug: We can install the wall side plug according to different

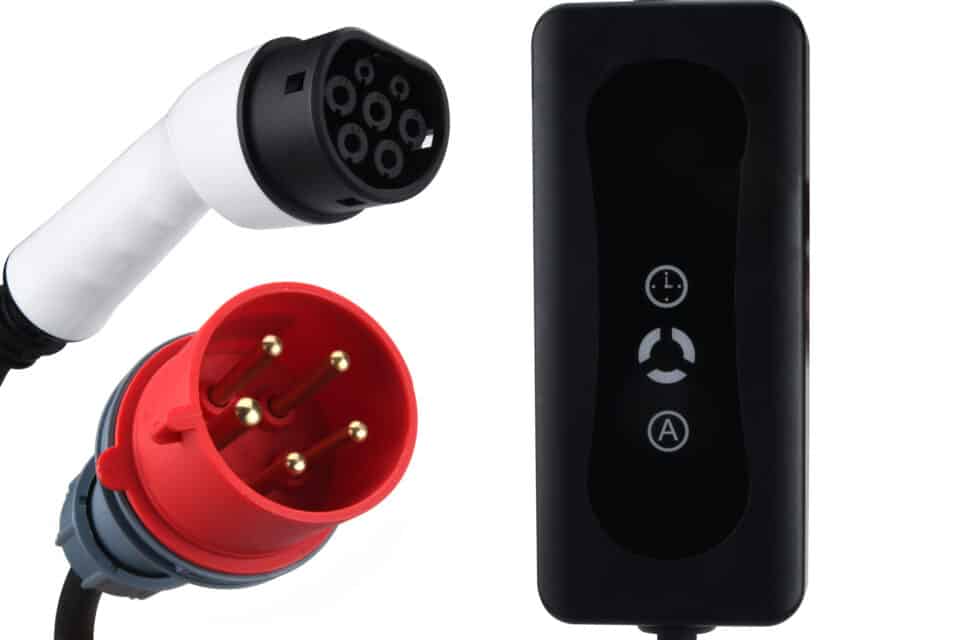

Countries situation: EU Market 32A 3Pin Red CEE Plug
North American Market —— NEMA 6-50 Plug ,NEMA10-50 ,NEMA 10-30 ,NEMA 14-30,NEMA 14-50 Plug

Parameter

Rated Current

8A / 10A / 13A/ 16A / 32A (Adjustable)

Rated Power

Max 22KW 3-Phase

Operation Voltage

AC 110V~250 V

Rate Frequency

50Hz/60Hz

Leakage Protection

Type B RCD (Optional )

Withstand Voltage

2600V AC 1min (with no flashover or breakdown)

Contact Resistance

≤0.3mΩ（L/N）

Insulation resistance

500MΩ （1000V AC）

Shell Material

ABS and PC Flame Retardant Grade UL94 V-0

Mechanical Life

No-Load Plug In / PullOut >10000 Times

Operating Temperature

-20° C ~ +50° C

Storage Temperature

-40° C ~ +80° C

Protection grade

IP66

EV Control Box Size

240mm (L) X 107mm (W) X 61mm (H)

Weight

2.8KG

LCD Display

Temperature, Charging Time, Actual Current, Actual Voltage, Actual Power, Capacity Charged

Standard

IEC 62752 , IEC 61851

Certification

CE Approved

Protection

1.Leakage Current Protection 2.Over Current Protection 3.0ver Voltage Protection 4. Under Voltage Protection 5.0ver Temperature Protection 6. Low Temperature Protection 7.Short Circuit Protection 8. Surge Protection 9.0verload Protection (self-checking recover)

Practical Scenarios

Product Usage Diagram

Start Charging

Start Charging

End Charging

Product Usage Precaution

The product complies with the requirements of the EU Directive.

Donot dispose ofthe productin household waste! Dispose of the product at an authorized waste disposal company or at a municipal waste disposal facility. Observe the currently valid regulations. In case of doubt, contact the disposal facility.
