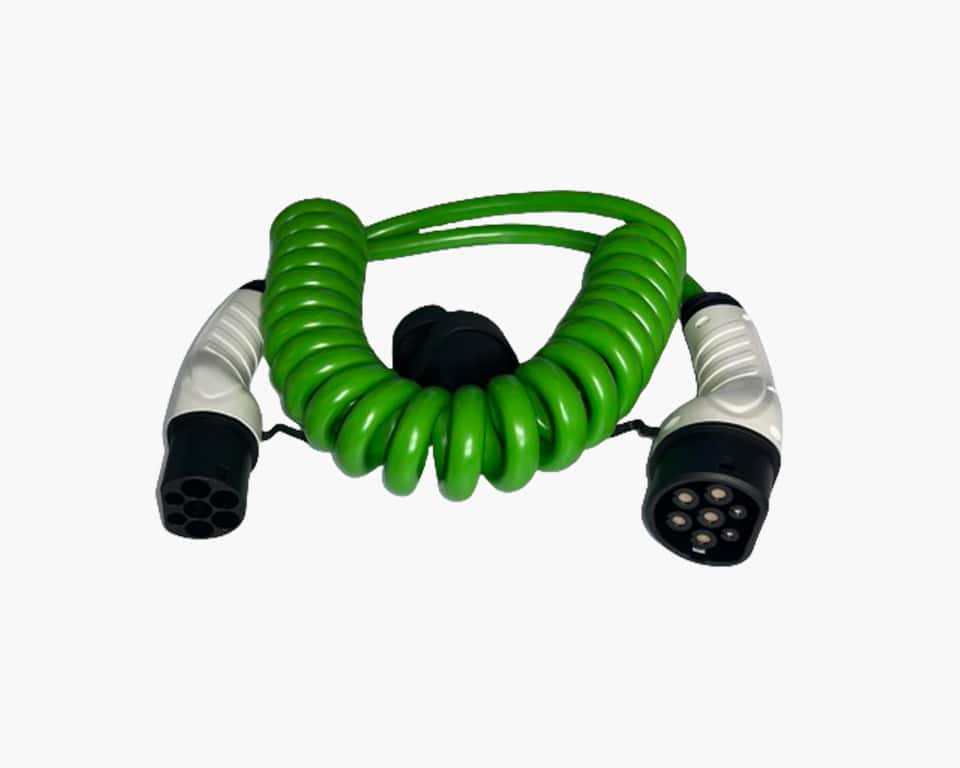

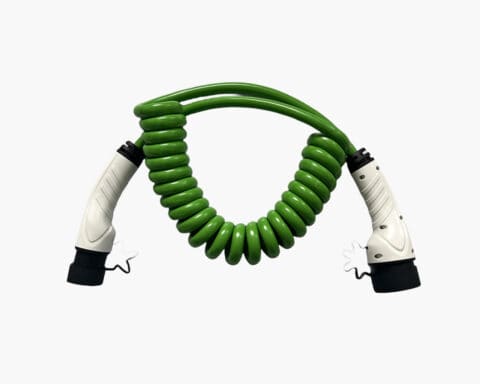

EV Coiled Cable

Inquiry

Parameter

Practical Scenarios

Product Usage Diagram

Product Usage Precaution

Certification

Inquiry

More Products

Parameter

Standard

IEC 62196-2: 2017

Rated Power

3.5kw / 7KW , 11KW / 22KW

Rated Current

16A / 32A Single Phase , 16A/ 32A Three Phase

Operation Voltage

AC230±10%

Insulation Resistance

500MΩ (1000V AC)

Withstand Voltage

2600V AC 1min (with no flashover or breakdown)

Pin Material

Copper Alloy

Shell Material

Thermoplastic.Flame Retardant Grade UL94 V-0

Mechanical Life

No-Load Plug In / PullOut >10000 Times

Contact Resistance

0.5mO Max

Terminal Temperature Rise

<50K

Operating Temperature

-40°C~+50°C

Impact Insertion Force

45N~80N

Waterproof Degree

IP55,IP66

Cable Protection

Reliability of materials,antiflaming,pressure-resistant,abrasion resistance,impact resistance and high oil

Certification

UL, CE Approved

Mode

Rated Current

16Amp

32Amp

Cable Specification

3 X 2.5mm 2 + 2 X 0.5mm2

3x14AWG+1X18AWG

3 X 6mm 2 +2 X 0.5mm2

3x10AWG+1X18AWG

Cable Color

Black

Cable Length

(5Meter ,10Meter) The length of the cable can be customized

Practical Scenarios

Product Usage Diagram

Start Charging

Start Charging

End Charging

Product Usage Precaution

The product complies with the requirements of the EU Directive.

Donot dispose ofthe productin household waste! Dispose of the product at an authorized waste disposal company or at a municipal waste disposal facility. Observe the currently valid regulations. In case of doubt, contact the disposal facility.

Attention! A dangerous situation may occur if the measures are not observed. Riskofdeath, seriousinjury and burns!

Do not use charging cables that are damaged at the housing, plugorcable!

Donot use extension cables of an ykind!

Donotusemultiplesockets!

Do not use travelad apters!

Vehicle coupling type 2.

Follow the operating instructions!

Do not expose to direct sunlight!
