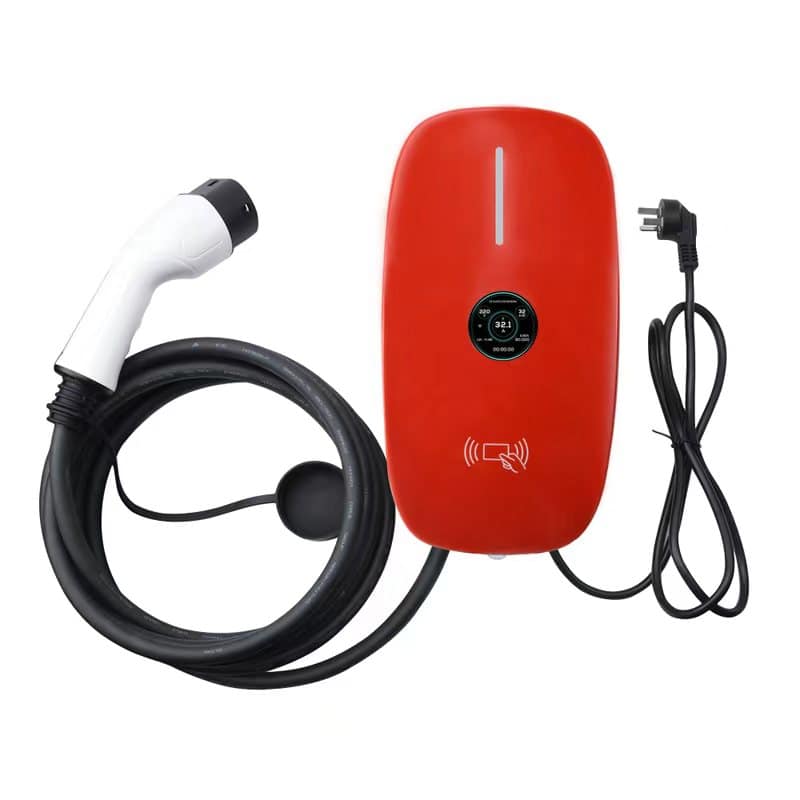

Round Screen Wall Hanging Charging Pile 7~22 kW

  • Intelligent temperature control, safe and reliabl
  • Swiping card for charging
  • APP remote control, reservation time and current adjustable
  • Support charging billing (OCPP1.6J)

Main advantages

  • Floor-standing /wall-mounted optional
  • Adjust charging current as needed
  • Multiple start modes
  • 4.3-inch large-screen human-computer interface
  • Real-time temperature monitoring
  • Complete certifications
  • Multiple safety protections
  • High-efficiency charging
Inquiry

Parameter

Practical Scenarios

Product Usage Diagram

Product Usage Precaution

Certification

Inquiry

More Products

Parameter

Rated Current

8A / 10A / 13A / 16A/32A (Adjustable)

Rated Power

Max 22KW 3-Phase 400V

Operation Voltage

AC 90V~256 V

Rate Frequency

50Hz/60Hz

Leakage Protection

Type B RCD (Optional )

Withstand Voltage

2600V AC 1min (with no flashover or breakdown)

Contact Resistance

≤0.3mΩ(L/N)

Insulation resistance

500MΩ (1000V AC)

Shell Material

ABS and PC housing material

Mechanical Life

No-Load Plug In / PullOut >10000 Times

Operating Temperature

-25° C ~ +50° C

Storage Temperature

-40° C ~ +60° C

Protection grade

IP66

EV Control Box Size

186mm X 354mm X 111mm

Weight

3.5KG

LCD Display

Temperature, Charging Time, Actual Current, Actual Voltage, Actual Power, Capacity Charged

Certification

CE Approved

Protection

1.Leakage Current Protection 2.Over Current Protection 3.0ver Voltage Protection 4. Under Voltage Protection 5.0ver Temperature Protection 6. Low Temperature Protection 7.Short Circuit Protection 8. Surge Protection 9.0verload Protection (self-checking recover)

Practical Scenarios

Product Usage Diagram

Start Charging

Start Charging

End Charging

Product Usage Precaution

The product complies with the requirements of the EU Directive.

Donot dispose ofthe productin household waste! Dispose of the product at an authorized waste disposal company or at a municipal waste disposal facility. Observe the currently valid regulations. In case of doubt, contact the disposal facility.

Attention! A dangerous situation may occur if the measures are not observed. Riskofdeath, seriousinjury and burns!

Do not use charging cables that are damaged at the housing, plugorcable!

Donot use extension cables of an ykind!

Donotusemultiplesockets!

Do not use travelad apters!

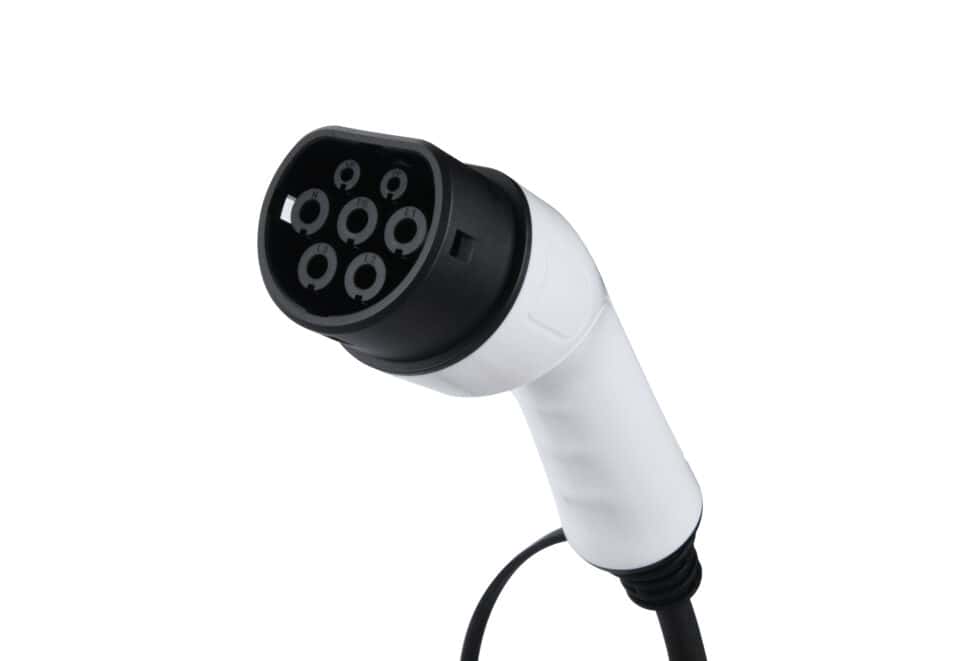

Vehicle coupling type 2.

Follow the operating instructions!

Do not expose to direct sunlight!
