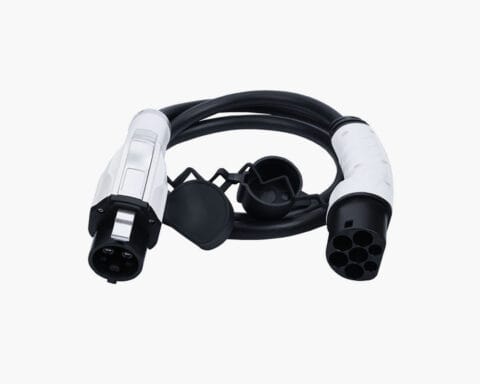

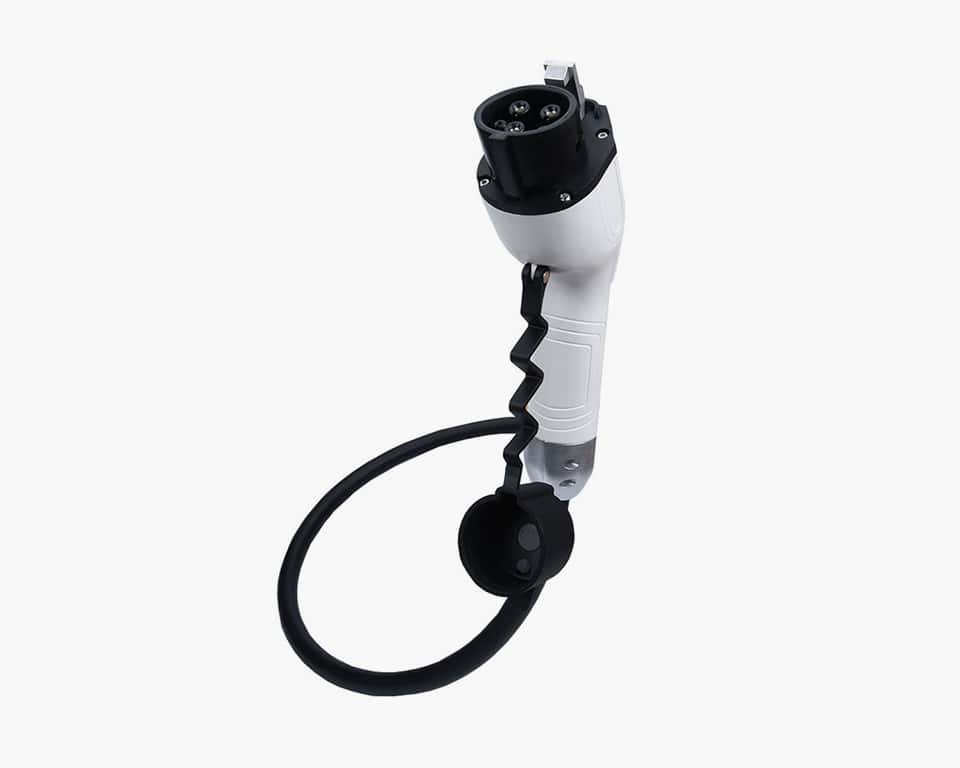

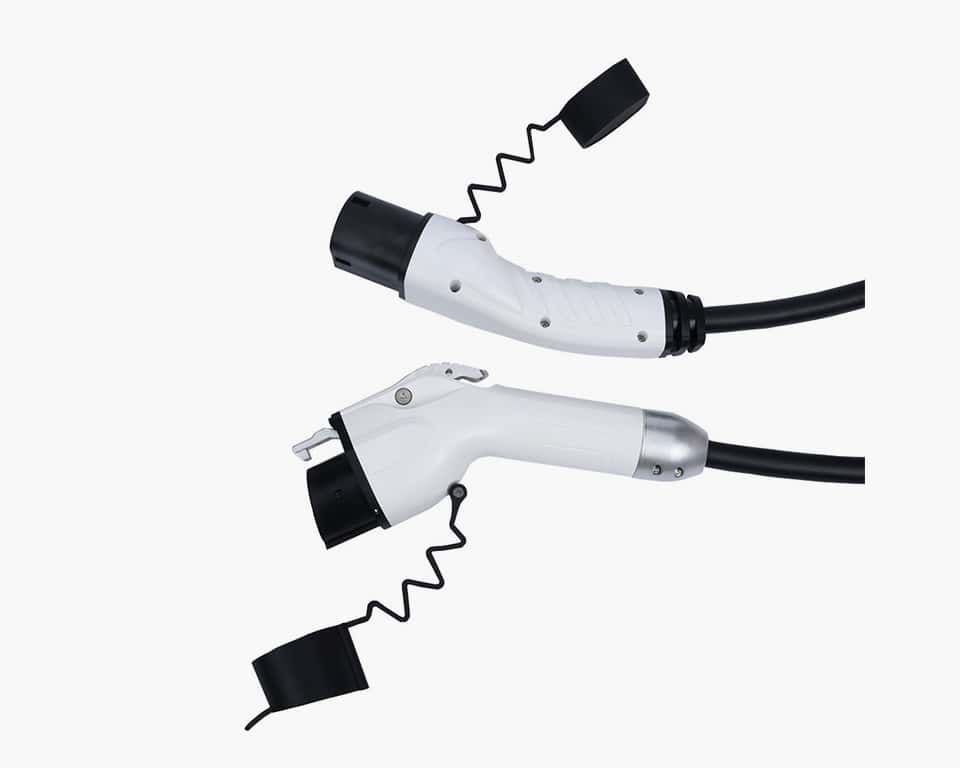

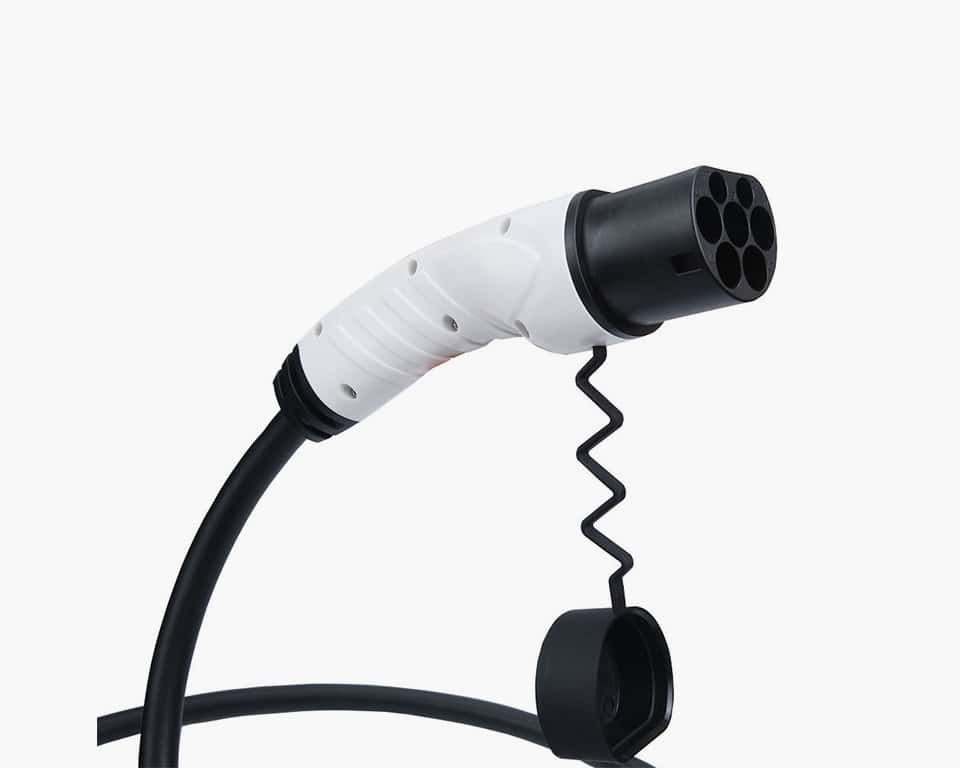

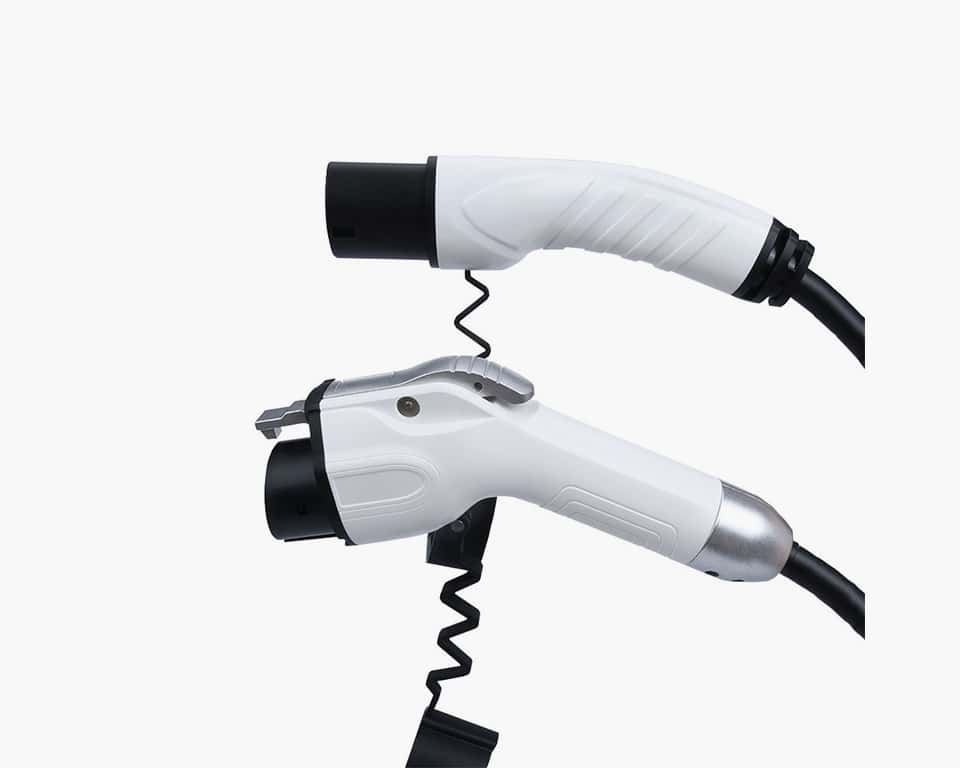

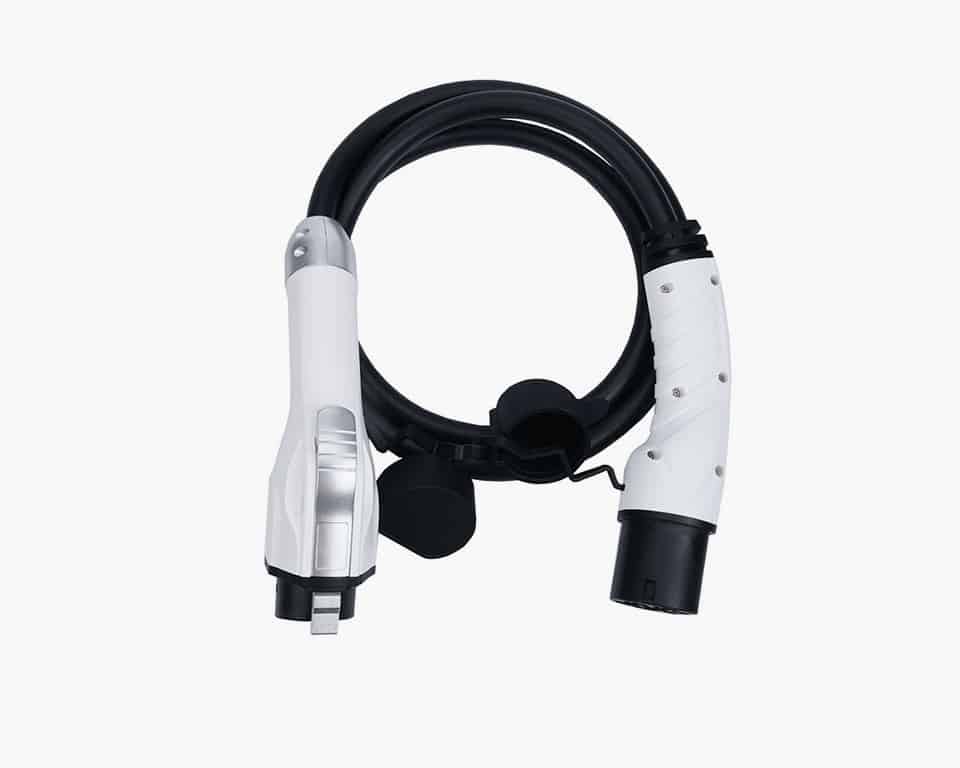

Type 1 to Type 2 EV Charging Cable
Parameter
Standard
SAE J1772-2010 to IEC 62196-2
Rated Power
3.5kw , 7KW
Rated Current
16AMP , 32AMP
Operation Voltage
AC230±10%
Insulation Resistance
500MΩ （1000V AC）
Withstand Voltage
2600V AC 1min (with no flashover or breakdown)
Pin Material
Copper Alloy
Shell Material
Thermoplastic.Flame Retardant Grade UL94 V-0
Mechanical Life
No-Load Plug In / PullOut >10000 Times
Contact Resistance
0.5mO Max
Terminal Temperature Rise
<50K
Operating Temperature
-40°C~+50°C
Impact Insertion Force
45N～80N
Waterproof Degree
IP55,IP66
Cable Protection
Reliability of materials,antiflaming,pressure-resistant,abrasion resistance,impact resistance and high oil
Certification
UL, CE Approved
Mode
Rated Current
16Amp
32Amp
Cable Specification
3 X 2.5mm 2 + 2 X 0.5mm2
3x14AWG+1X18AWG
3 X 6mm 2 +2 X 0.5mm2
3x10AWG+1X18AWG
Cable Color
Black
Cable Length
(5Meter ,10Meter) The length of the cable can be customized
Practical Scenarios
Product Usage Diagram
Start Charging
Start Charging
End Charging
Product Usage Precaution
The product complies with the requirements of the EU Directive.
Donot dispose ofthe productin household waste! Dispose of the product at an authorized waste disposal company or at a municipal waste disposal facility. Observe the currently valid regulations. In case of doubt, contact the disposal facility.
Attention! A dangerous situation may occur if the measures are not observed. Riskofdeath, seriousinjury and burns!
Do not use charging cables that are damaged at the housing, plugorcable!
Donot use extension cables of an ykind!
Donotusemultiplesockets!
Do not use travelad apters!
Vehicle coupling type 2.
Follow the operating instructions!
Do not expose to direct sunlight!
