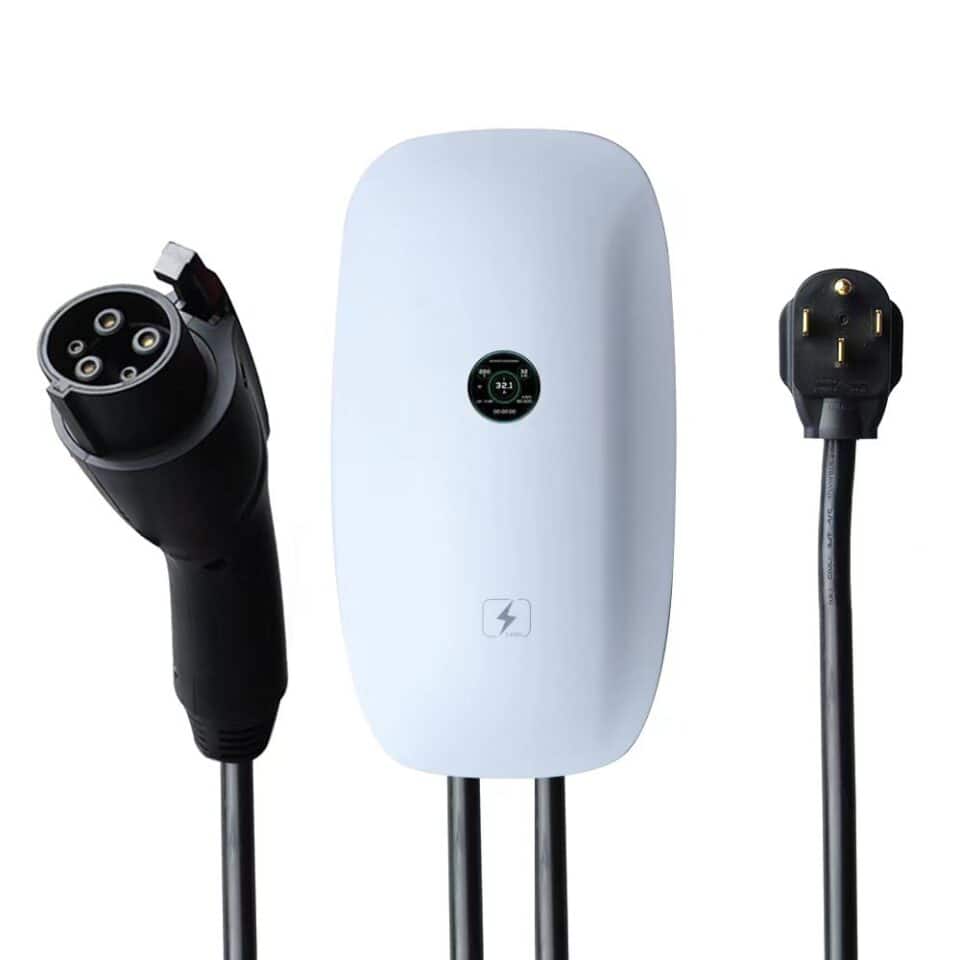

UL Standard Round Screen Wall Hanging Charging Pile 7~11kw

Intelligent temperature control, safe and reliabl
Swiping card for charging
APP remote control, reservation time and current adjustable
NEMA 14-50 plug

Main advantages

Floor-standing /wall-mounted optional
Adjust charging current as needed
Multiple start modes
Real-time temperature monitoring
Complete certifications
Multiple safety protections
High-efficiency charging

Parameter

Rated Current

32A / 40A / 48A (Adjustable)

Rated Power

Max 11KW

Operation Voltage

AC 110V~256 V

Rate Frequency

50Hz/60Hz

Leakage Protection

Type B RCD (Optional )

Withstand Voltage

2600V AC 1min (with no flashover or breakdown)

Contact Resistance

≤0.3mΩ（L/N）

Insulation resistance

500MΩ （1000V AC）

Shell Material

ABS and PC housing material

Mechanical Life

No-Load Plug In / PullOut >10000 Times

Operating Temperature

-25° C ~ +50° C

Storage Temperature

-40° C ~ +60° C

Protection grade

IP66

EV Control Box Size

186mm X 354mm X 111mm

Weight

3.5KG

LCD Display

Temperature, Charging Time, Actual Current, Actual Voltage, Actual Power, Capacity Charged

Certification

CE Approved

Protection

1.Leakage Current Protection 2.Over Current Protection 3.0ver Voltage Protection 4. Under Voltage Protection 5.0ver Temperature Protection 6. Low Temperature Protection 7.Short Circuit Protection 8. Surge Protection 9.0verload Protection (self-checking recover)

Practical Scenarios

Product Usage Diagram

Start Charging

Start Charging

End Charging

Product Usage Precaution

The product complies with the requirements of the EU Directive.

Donot dispose ofthe productin household waste! Dispose of the product at an authorized waste disposal company or at a municipal waste disposal facility. Observe the currently valid regulations. In case of doubt, contact the disposal facility.
